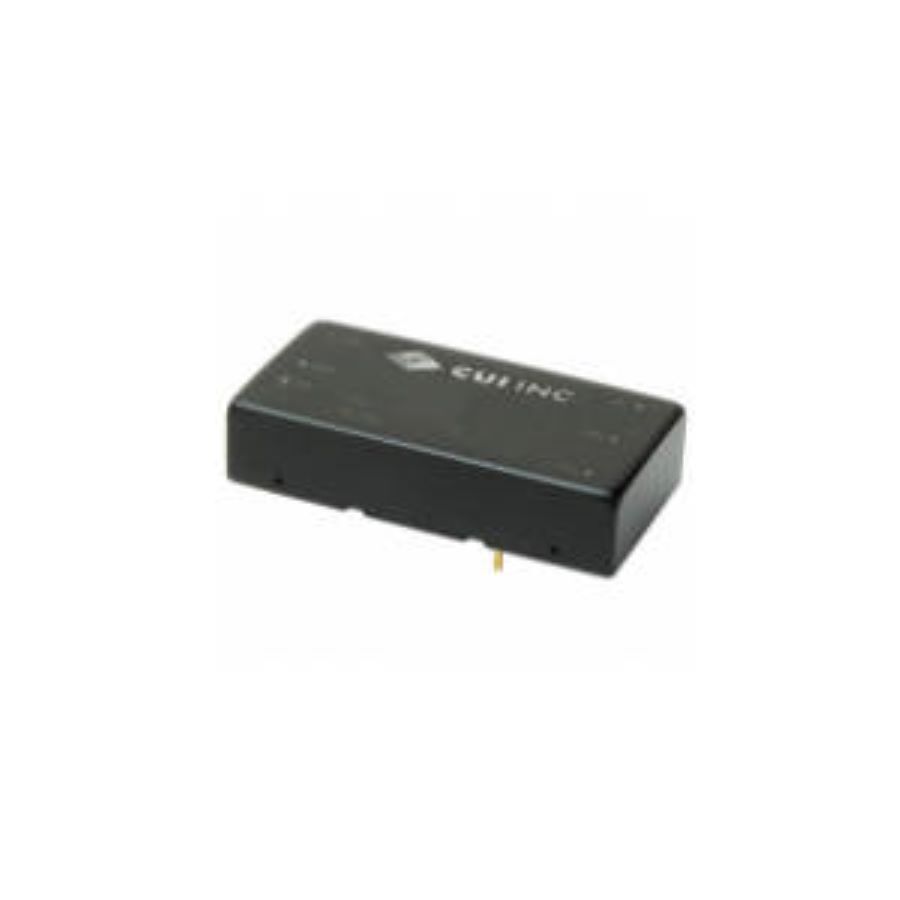

PYB20-Q24-S5
Manufacturer:
Same Sky
Mfr.Part #:
PYB20-Q24-S5
Datasheet:
Description:
DC to DC Converters DIP-6 Through Hole Nominal Input Voltage:9 V to 36 V Min Input Voltage:9 V Max Input Voltage:36 V 90 %
| Parameter | Value |
|---|---|
| Length | 50.8 mm |
| Width | 25.4 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 11.8 mm |
| Packaging | Tube |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Weight | 28.349523 g |
| Features | OCP, OVP, SCP, UVLO |
| Min Input Voltage | 9 V |
| Output Voltage | 5 V |
| Max Power Dissipation | 20 W |
| Max Output Current | 4 A |
| Max Input Voltage | 36 V |
| Number of Outputs | 1 |
| Isolation Voltage | 1 kV |
| Output Power | 20 W |
| Current - Output 1 | 4 A |
| Efficiency | 90 % |
| Voltage - Output 1 | 5 V |
| Nominal Input Voltage | 9 V to 36 V |
| Isolation | Isolated |
| Output Current-Channel 1 | 4 A |
| Output Voltage-Channel 1 | 5 V |
